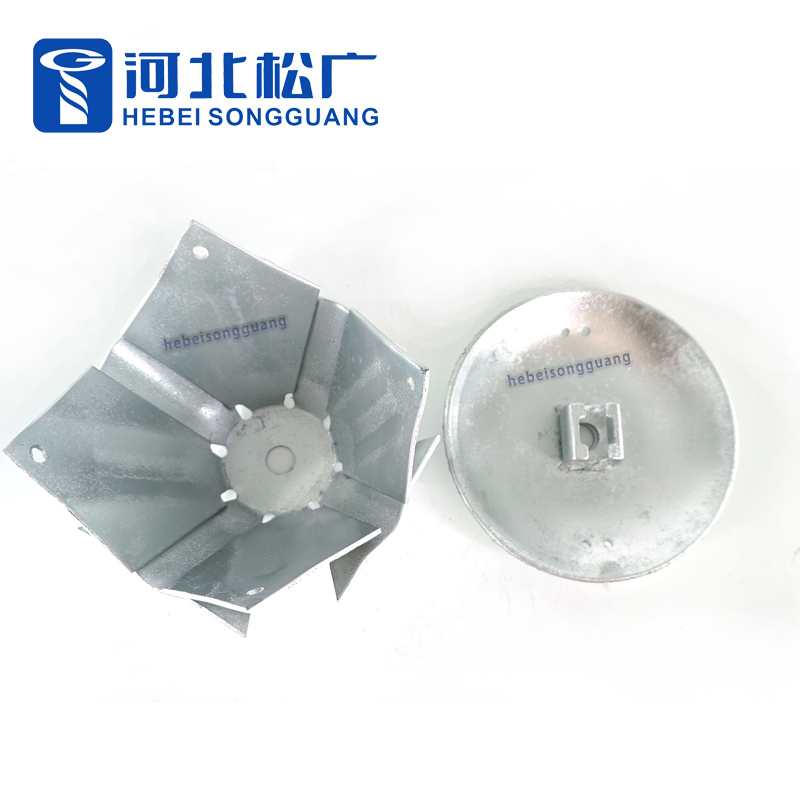

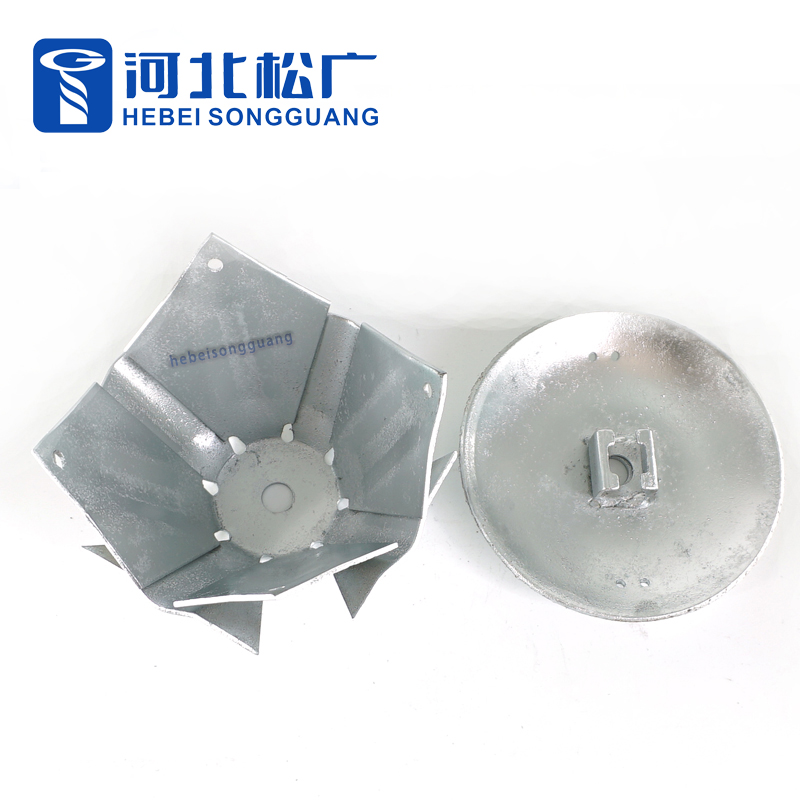

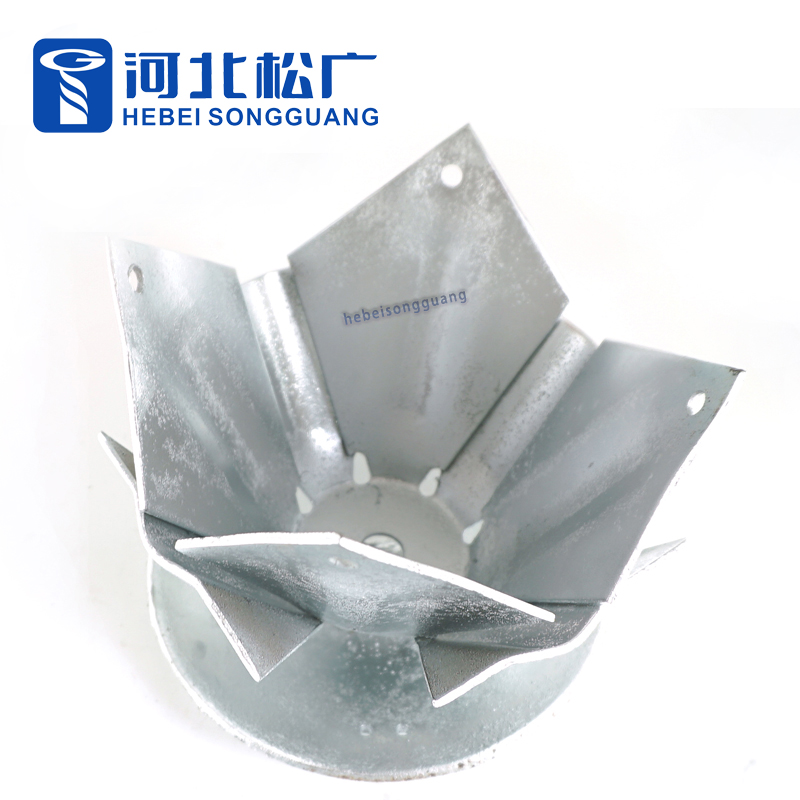

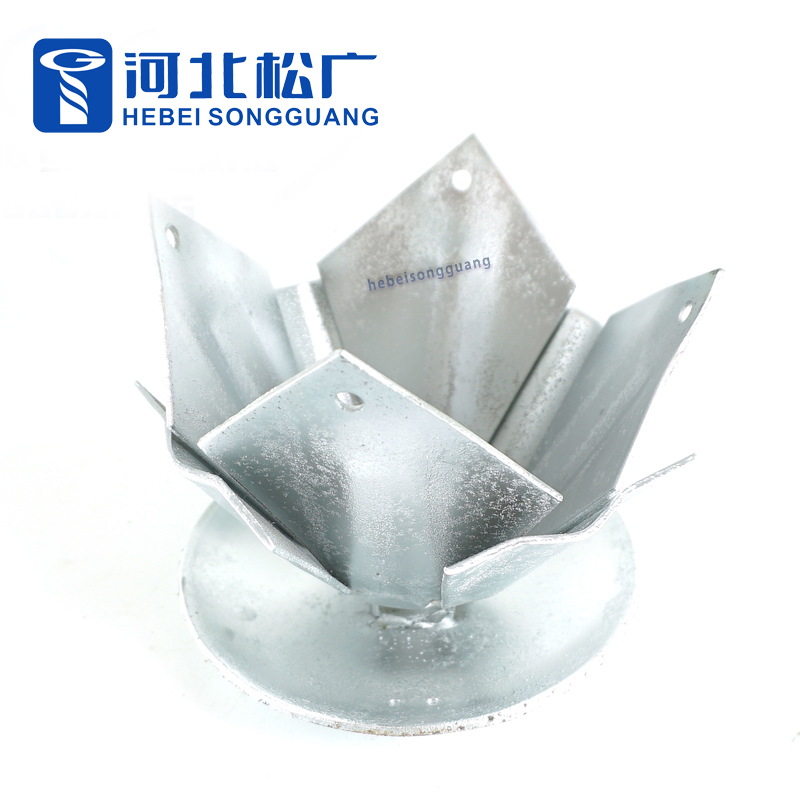

Expanding anchors are made for installation in holes augered by power drillers. The anchor is formed by expanding wings and a base plate. A retainer on the bottom holds the nut from the forged eye rod. Anchor rod ordered separately.
During installation, a hole to the size listed on the table for the anchor is augured in line with the guy angle and to a depth based on the rod length. The rod is secured to the anchor and lowered into the hole. An expanding-and-tamping tool is used to strike the top of the anchor and open the blades into undisturbed soil. The hole is filled and tamped.
Expanding anchor is made of steel, with surface treatment silver or black usually.
Expanding anchor with different size, can be customized according to the clients’ requirements.
Expanding anchors are made for installation in holes augered by power drillers. The anchor is formed by expanding wings and a base plate. A retainer on the bottom holds the nut from the forged eye rod. Anchor rod ordered separately.
During installation, a hole to the size listed on the table for the anchor is augured in line with the guy angle and to a depth based on the rod length. The rod is secured to the anchor and lowered into the hole. An expanding-and-tamping tool is used to strike the top of the anchor and open the blades into undisturbed soil. The hole is filled and tamped.
Expanding anchor is made of steel, with surface treatment silver or black usually.
Expanding anchor with different size, can be customized according to the clients’ requirements.
