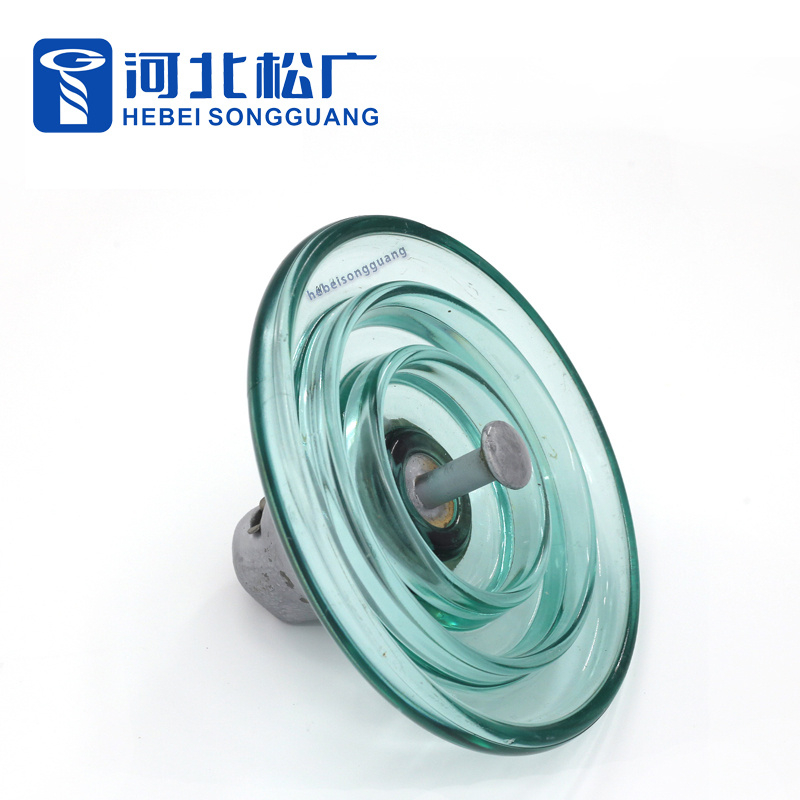

Disc Suspension Toughened Glass Insulator

This type of disc-shaped suspension tempered glass insulator is a core insulating component for high-voltage and ultra-high-voltage power transmission lines. It uses high-quality tempered glass as the core insulating material, combined with high-strength iron caps, steel feet and precise cement gluing process for molding. It has three core advantages: zero-value self-explosion, high mechanical strength and low operation and maintenance costs. It is widely applicable to power transmission lines with voltage levels ranging from 110kV to 1000kV +, providing reliable insulation guarantee for the stable operation of the power grid.

Availability:

Quantity:



Inquire Add to Basket

Model:
Disc Suspension Toughened Glass Insulator

Product Description

Product description
product name	Disc Suspension Toughened Glass Insulator
Structural composition	1,Iron cap: Connects electrical fittings and transmits mechanical loads; 2,Tempered glass component (main insulator, formed with prestress layer through high-temperature tempering); 3,Steel foot: Connects to the conductor side fittings; 4,High-strength cement adhesive: Firmly bonds the iron cap, glass component, and steel foot together.
Place of Origin	Hebei, China
Brand Name	SONGGUANG
Standard	ISO 9001
